ONEiO Inbound OAuth 2.0

Introduction

ONEiO REST receiver supports OAuth 2.0 with the client credentials flow. For that purpose, there is a dedicated token resource and a receiver URI for each of the environments:

Token resource URI:

• QA: https://receiver-authz-test.service-flow.com/oauth2/token
• PROD: https://receiver-authz.service-flow.com/oauth2/token

REST Receiver URI:

• QA: https://rest-receiver-test.service-flow.com/api/v2
• PROD: https://rest-receiver.service-flow.com/api/v2

How it works

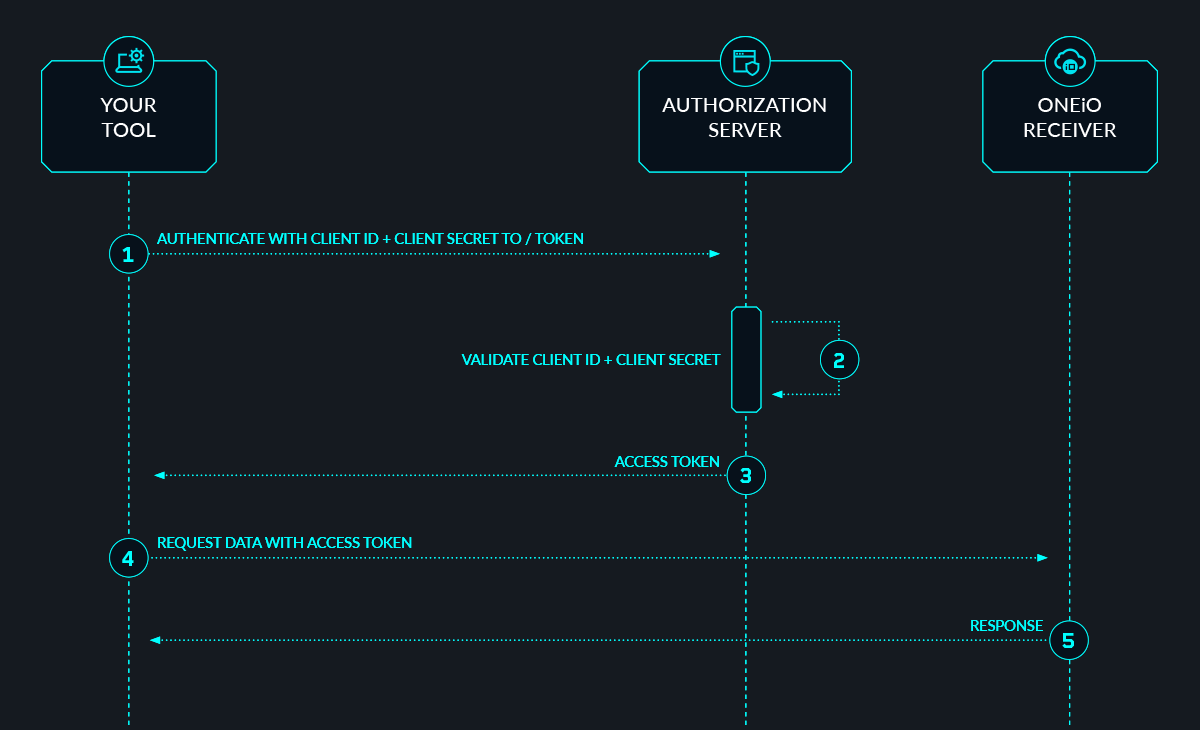

Here is a flow diagram of the OAuth 2.0 authentication mechanism.

Setup

The information needs to be sent in an x-www-form-urlencoded format and should contain grant_type, client_id, and client_secret keys.

The value of the grant_type is always client_credentials. Key values of client_id and client_secret are equal to the username and the password of the corresponding endpoint in ONEiO.

Example:

  curl --location --request POST 'https://receiver-authz-test.service-flow.com/oauth2/token'\
  --header 'Content-Type: application/x-www-form-urlencoded' \
  --data-urlencode 'grant_type=client_credentials' \
  --data-urlencode 'client_id=username' \
  --data-urlencode 'client_secret=password'

In response ONEiO will return a token that expires one hour from that moment:

  {
  "access_token": "TOKEN GOES HERE",
  "scope": "ROLE_INTEGRATION",
  "token_type": "Bearer",
  "expires_in": 3599
  }

All the consequent requests to the REST receiver should then use the value of the received token in the Authorization header with the prefix Bearer.

  curl --location --request POST 'https://rest-receiver-test.service-flow.com/api/v2'\
  --header 'Authorization: Bearer TOKEN GOES HERE'\
  --header 'Content-Type: application/json'\
  --data-raw '{"id": "123456789"}'
