How to configure CANCOM BMECat for integration with ONEiO

Introduction

This guide walks you through the necessary steps to configure a CANCOM BMECat connection, making it integration-ready with ONEiO.

If you have any questions while setting up the integration, feel free to reach out to our team at support@oneio.cloud.

You can sign up for a free trial of ONEiO here: ONEiO Free Trial

Overview

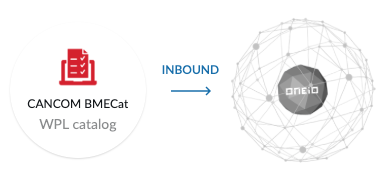

This article provides a step-by-step overview of how to set up an integration between CANCOM BMECat and the ONEiO platform. The integration enables automated transfer of Service Catalog articles from CANCOM to ONEiO.

1. Prerequisites
2. Setting up the CANCOM BMECat endpoint in ONEiO

Prerequisites

The CANCOM BMECat integration with ONEiO is available only to parties integrating with CANCOM.

1. Request an SFTP Server Instance

To enable the integration, you must first request an SFTP server instance from ONEiO.

How to order:
Send an email with the subject line or body containing “CANCOM BMECat SFTP server” to support@oneio.cloud.

2. Get Article synchronization enabled in CANCOM

For the end-to-end integration to function correctly, article synchronization must be enabled on the CANCOM side. Please contact your CANCOM representative to ensure this feature is active.

3. Authentication from CANCOM to ONEiO

The SFTP server uses client certificate-based authentication.

• ONEiO will provide the necessary certificate and configuration details during the SFTP server provisioning.
• This authentication must be set up on the CANCOM side.

Setting up the CANCOM BMECat Endpoint in ONEiO

You can easily set up the endpoint yourself directly in your ONEiO subscription. There’s no need to coordinate with a CANCOM representative.

1. Create a New Endpoint

• Navigate to the Endpoints section in your ONEiO subscription.
• Click on + New endpoint (top right).
• Select CANCOM BMECat from the list.
• Click Create.

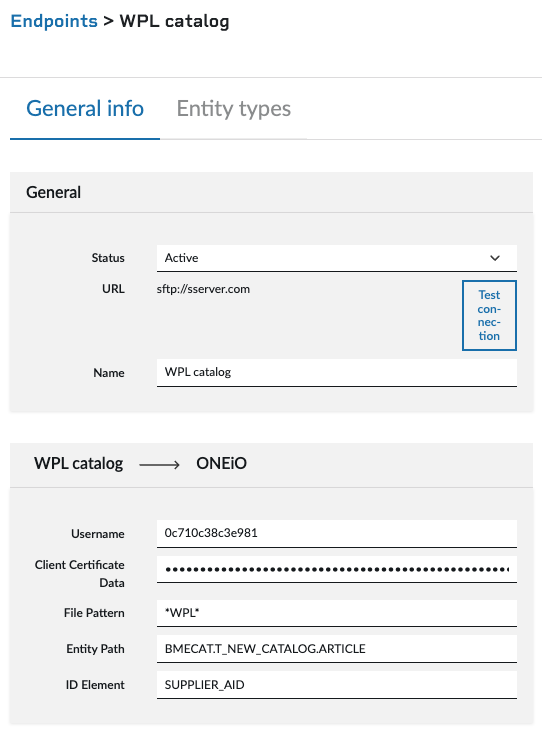

2. Fill in the General Information

In the General Info tab, complete the following fields:

• Name: A meaningful identifier for the endpoint (e.g. CANCOM BMECat).
• Username: As provided by ONEiO.
• Client Certificate: Upload the client certificate received from ONEiO.
• File Pattern: Define the file pattern that matches the incoming catalog files. There can be only a single file pattern. If you need to transfer articles according to another file pattern then create another endpoint for it; the second endpoint can connect to the same SFTP server instance.
• Path to XML Entity: The internal XML path to the relevant entity.
• ID Element reference: The unique ID reference within the XML.

Example:

Note: The timezone is automatically set to Germany and cannot be changed.

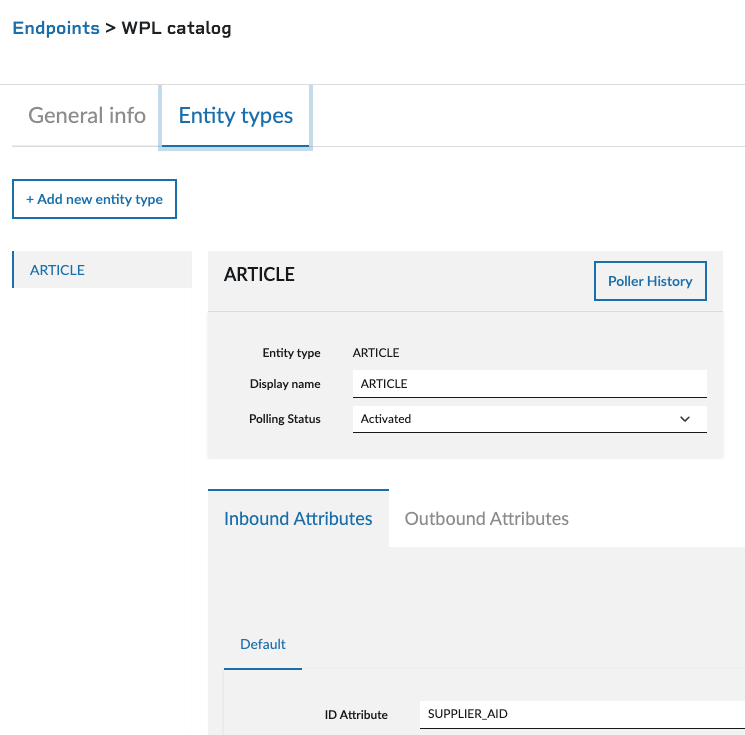

3. Define Entity-Specific Configuration

• Switch to the Entities tab.
• Input the ID Element reference again to complete the setup.

Example:

4. Finalize and Create

Click Create to complete the configuration.

That’s it! Your CANCOM BMECat endpoint is now ready to receive catalog articles from CANCOM.

Need assistance? We’re here to help, contact us at: support@oneio.cloud.

Happy integrating!
