Structured Body - Use Cases and Configurations

Introduction

ONEiO uses an internal representation of messages that customers are sending between their systems.

The reason of having this internal canonical model is to make it easier to access the message data in a common way and to present the data to our users in a simplified way.

By default and for most use cases, the entity body structure, out of the box, is represented as the key-value body where routing rules and endpoint configurations are done with the dot notation but for more complex cases, we have another entity body structure called the Structured Body where routing rules and endpoint configurations are done with the slash notation.

This article first highlights the default key-value body structure, its uses cases and challenges encountered given a use case. Then the article goes further into the Structured Body topic, the reasons why it is needed, and how it solves the challenges with examples using the same use case cited earlier and then different ways of implementing this in your integration configurations.

In case you have questions related to this subject, send a mail to support@oneio.cloud.

You can sign up for a free trial of ONEiO from the following link: ONEiO Free Trial

Overview

Default key-value body / Dot notation

To see the structure of your current message body, open a message and look for the "Received attributes" section. By default, this section will display:

• the familiar key-value style body structure.
• the use of dot notation in the received attributes.

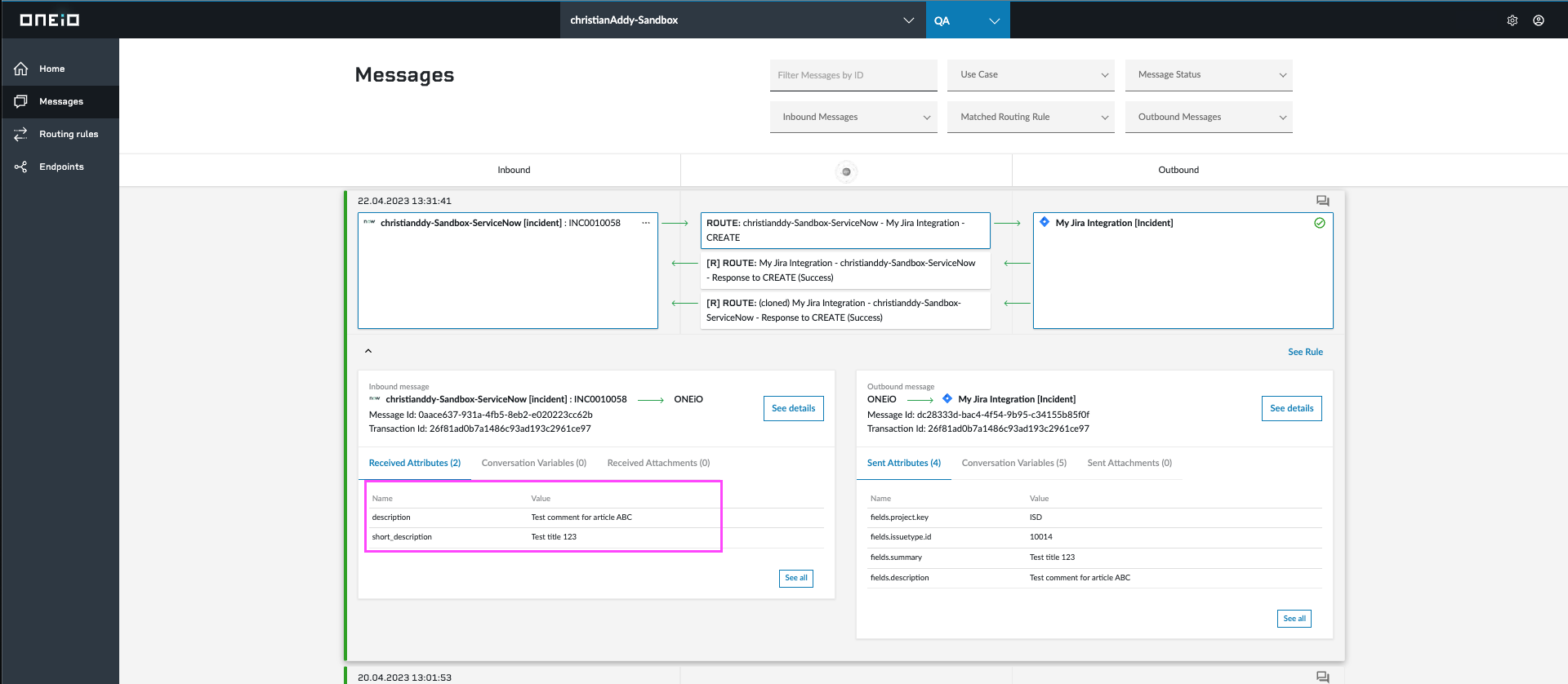

Received Attributes - key-value body structure

View from "See all" modal window - Received attributes - key-value body structure

This is the original way message payloads are stored and it makes mapping between source and target messages easy. In most cases, this is sufficient for mapping in routing rules, for attributes in outbound mappings, attribute conditionals items and adding attributes under endpoint configuration in general.

Here's an example of a received XML message and the resulting key-value representation of it:

<Incident>
   <Header>
     <Id>INC-123</id>
   </Header>
   <Data>
     <Description>Desc</Description>
   </Data>
</Incident>

And here's the key-value representation of the payload. We call these key-values attributes with names and values:

As seen above, a dot-notation is used to represent the structure.

There are cases, however, where the messages have more complex hierarchical structures, with repeating elements, elements containing attributes, and more. Here's an example of a received XML message with a more complex hierarchical structure:

<Incident id="INC-123">
  <Data>
    <Description>Desc</Description>
    <Person role="manager">
      <email>jorma@example.com</email>
    </Person>
    <Person role="employee">
      <email>orja@example.com</email>
    </Person>
    <ExtraData>
      <Data>
        <Name>foo</Name>
        <Value>bar</Value>
      </Data>
      <Data>
        <Name>baz</Name>
        <Value>baa</Value>
      </Data>
    </ExtraData>
    <Comments>
      <Comment date="2018-08-17T09:45:43" user="User1">Some work notes 1</Comment>
      <Comment date="2018-08-17T09:56:27" user="User2">Some work notes 2</Comment>
    </Comments>
  </Data>
</Incident>

The key-value presentation of this XML would look like this:

To make it possible to handle more complex hierarchies, this is handled by a different entity body called the structured body. Structured body consists of a hierarchy nodes that have a name, value and attributes. This structure can be accessed with an XPath-like query syntax.

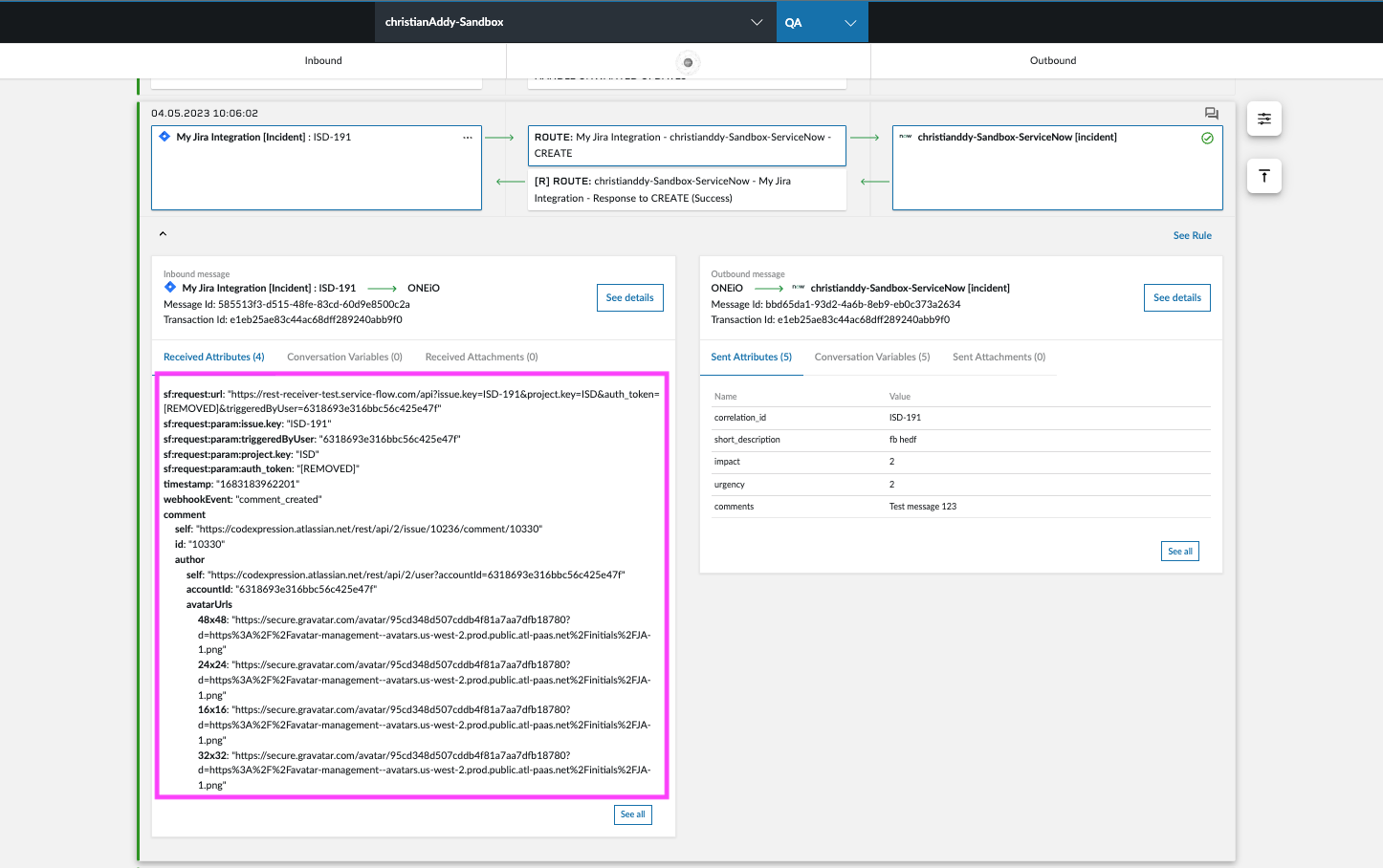

Received Attributes - Structured Body

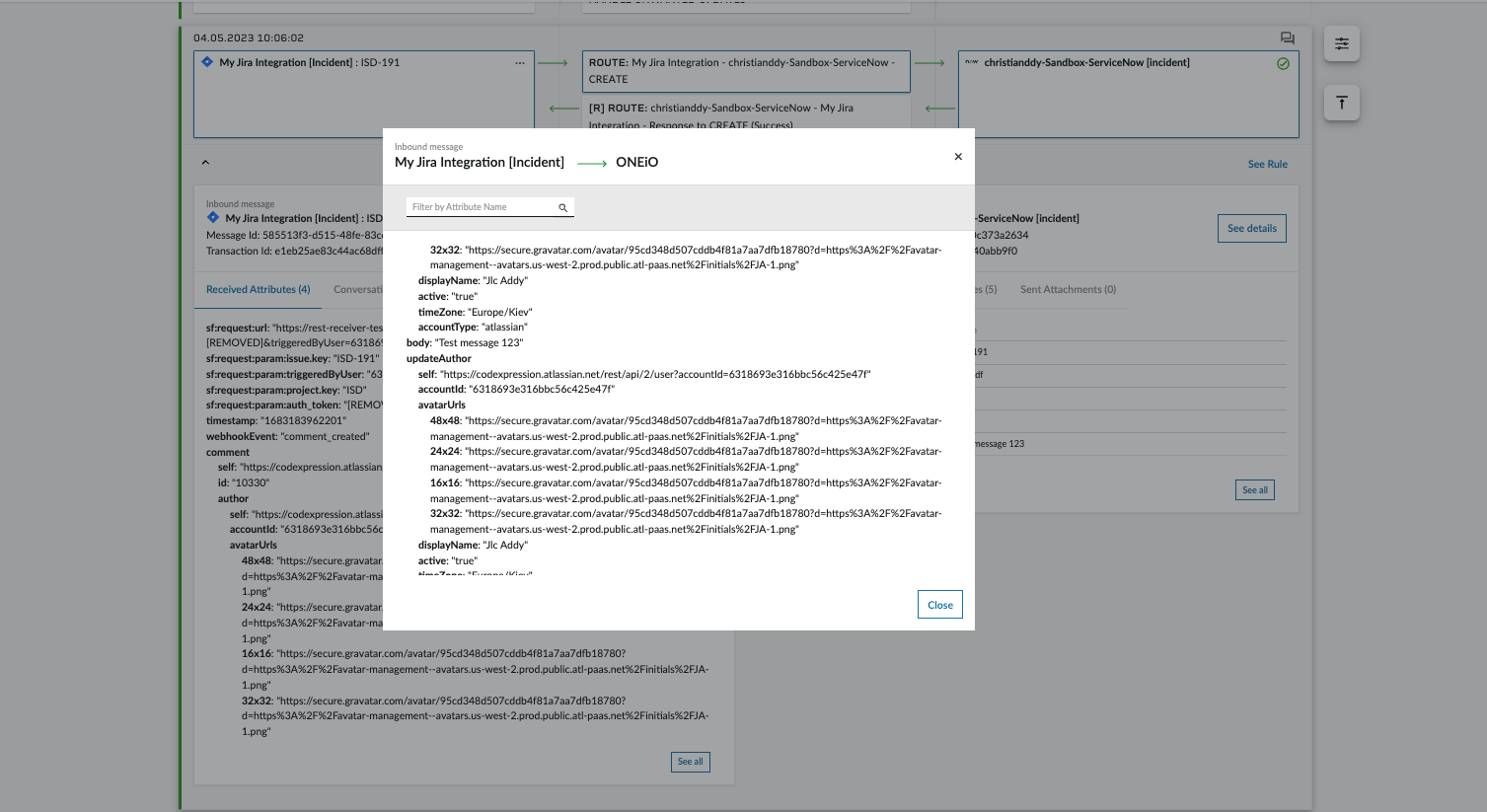

View from "See all" modal window - Received attributes - Structured Body

Now using as a reference the previous XML example, here's how once again the received XML message and how one would configure the different data points or attributes with structured body:

<Incident id="INC-123">
  <Data>
    <Description>Desc</Description>
    <Person role="manager">
      <email>jorma@example.com</email>
    </Person>
    <Person role="employee">
      <email>orja@example.com</email>
    </Person>
    <ExtraData>
      <Data>
        <Name>foo</Name>
        <Value>bar</Value>
      </Data>
      <Data>
        <Name>baz</Name>
        <Value>baa</Value>
      </Data>
    </ExtraData>
    <Comments>
      <Comment date="2018-08-17T09:45:43" user="User1">Some work notes 1</Comment>
      <Comment date="2018-08-17T09:56:27" user="User2">Some work notes 2</Comment>
    </Comments>
  </Data>
</Incident>

EXAMPLES WITH JSON:

EXAMPLE 1:

Let's look at this payload example of a received message in JSON format:

{
  "contact": {
    "firstName": "John",
    "lastName": "Doe"
  },
  "issue": {
    "fields": {
      "labels": [
        "Object",
        "Item"
      ]
    }
  }
}

This is how the payload above will be represented in ONEiO UI using the Structured Body structure, under received attributes:

contact
  firstName:"John"
  lastName: "Doe"
issue
  fields
    labels
      labels:"Object"
      labels:"Item"

And this is how you can refer to/access this data:

With the example of /issue/fields/labels[labels="object"]/labels
The first part(/labels[labels="object"]) is essentially querying the data to check whether labels object exists, and the second /labels will point to the existing matched label element inside the first label element (it's read as /issue/fields/labels/labels).

EXAMPLE 2

With a received payload as seen below:

{
  "request": [
    {
      "id": "1247fad",
      "url": "https://www.example.org",
      "rate": "591",
      "speed": "720"
    }
  ]
}

This is how the payload above will be represented in ONEiO UI using the Structured Body structure, under received attributes:

request
  id:"1247fad"
  url:"https://www.example.org"
  rate: "591"
  speed: "720"

And this is how you can refer to/access this data:

Xpath special characters

Some characters are part of Xpath syntax and depending on the position, they need to be escaped.

This payload example:

{
  "request": {
      "id": "123456",
      "url": "https://www.example.org",
      "detail": {
      	"@type": "oldcase"
      }
    }

Will be represented as the following using Structured Body format:

request
  id:"123456"
  url:"https://www.example.org"
    detail
      @type

And this is how to refer to the attributes above:

CONFIGURATION METHODS AND TIPS

• All root attributes already present can remain the same as-is.
• When there is a need to update an attribute data type concerning how it is sent or received, a forward slash needs to precede the attribute and for each attribute level you add a slash (see examples below).

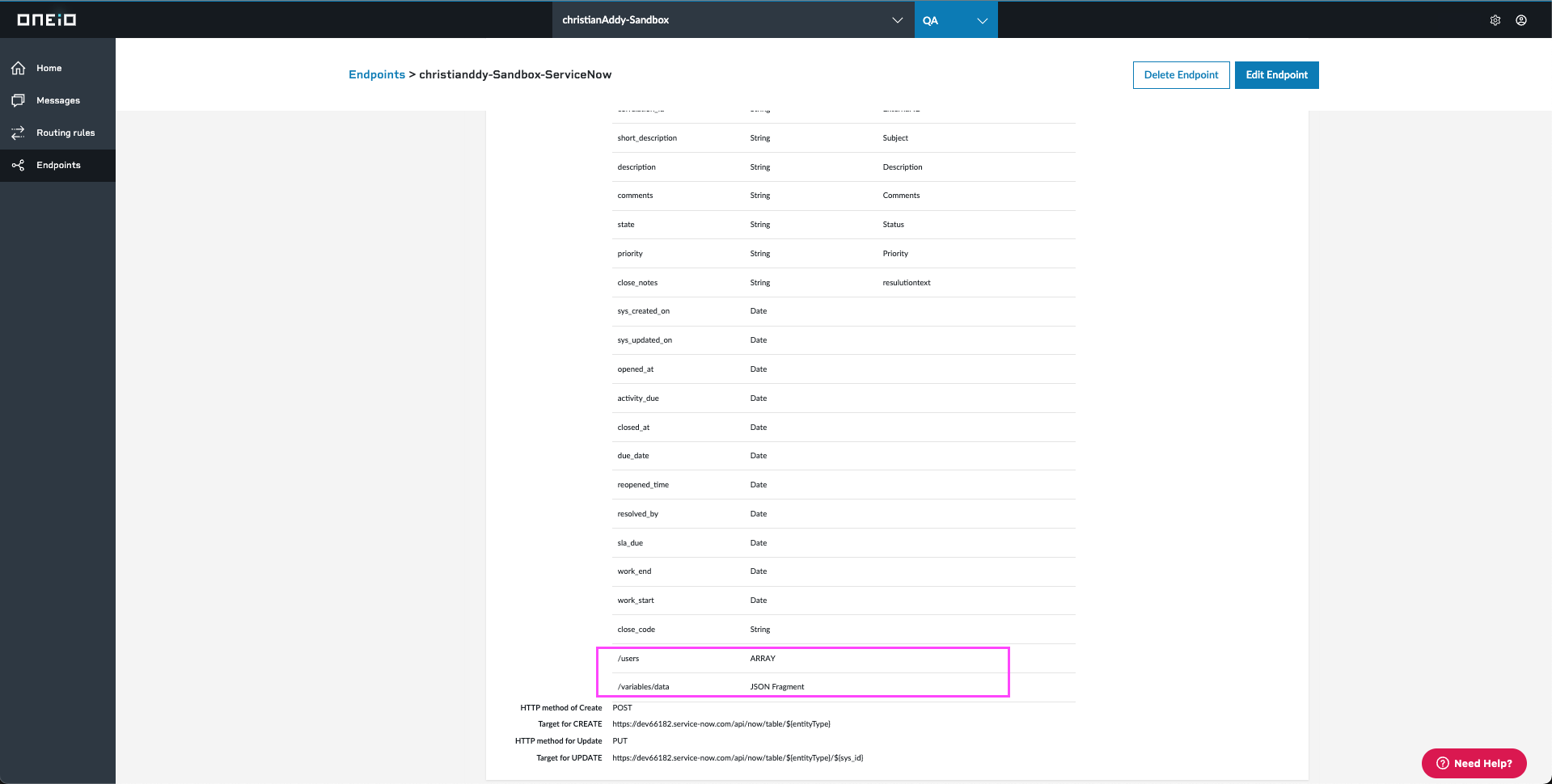

Adding to Endpoint configuration

• Just like in dot notation, referencing attributes with slash notation can be used on routing rules attribute conditions, outbound mappings, conversation variables and runtime variables. Here are a couple of examples of configurations in the UI - in edit and view mode:

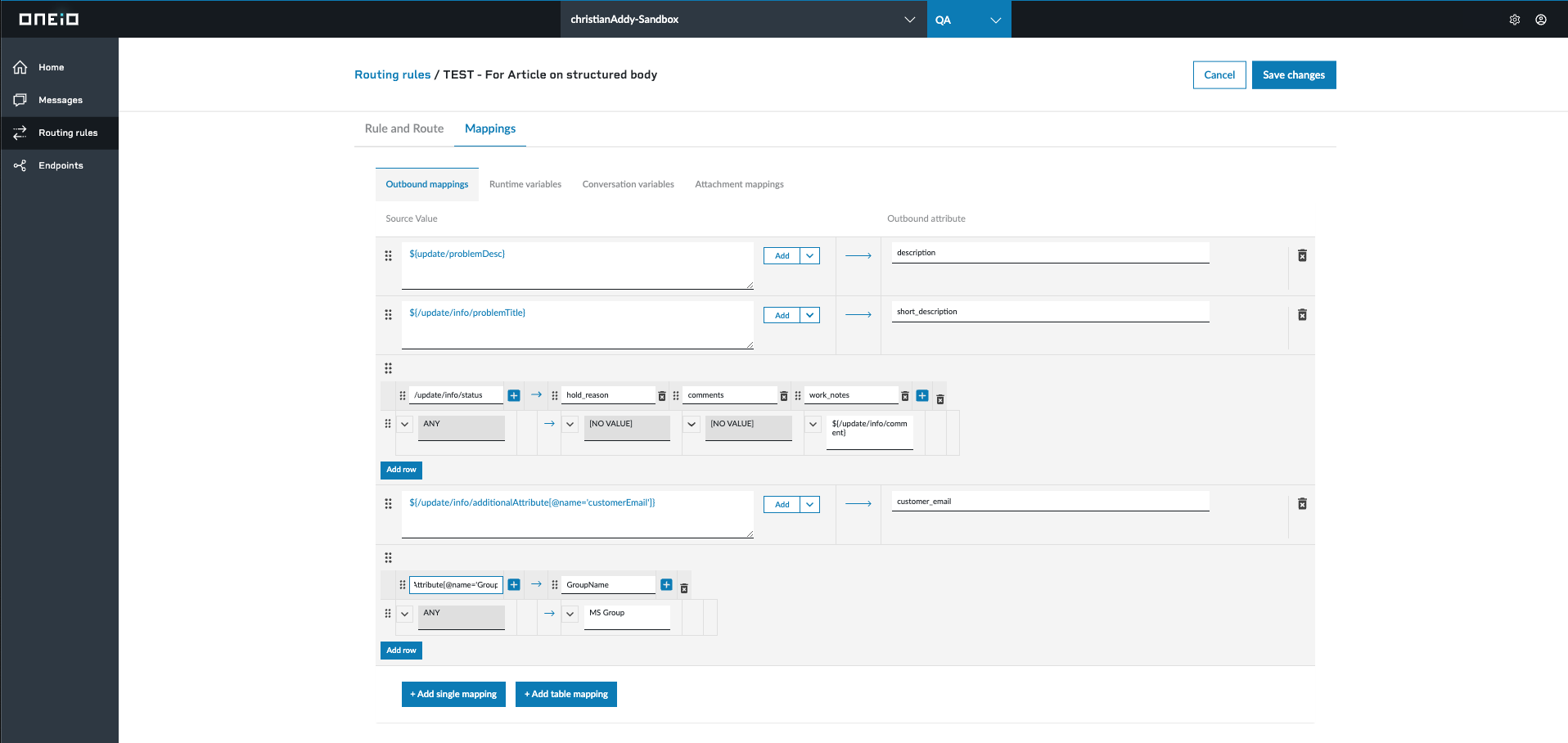

Examples in Outbound mappings - edit view

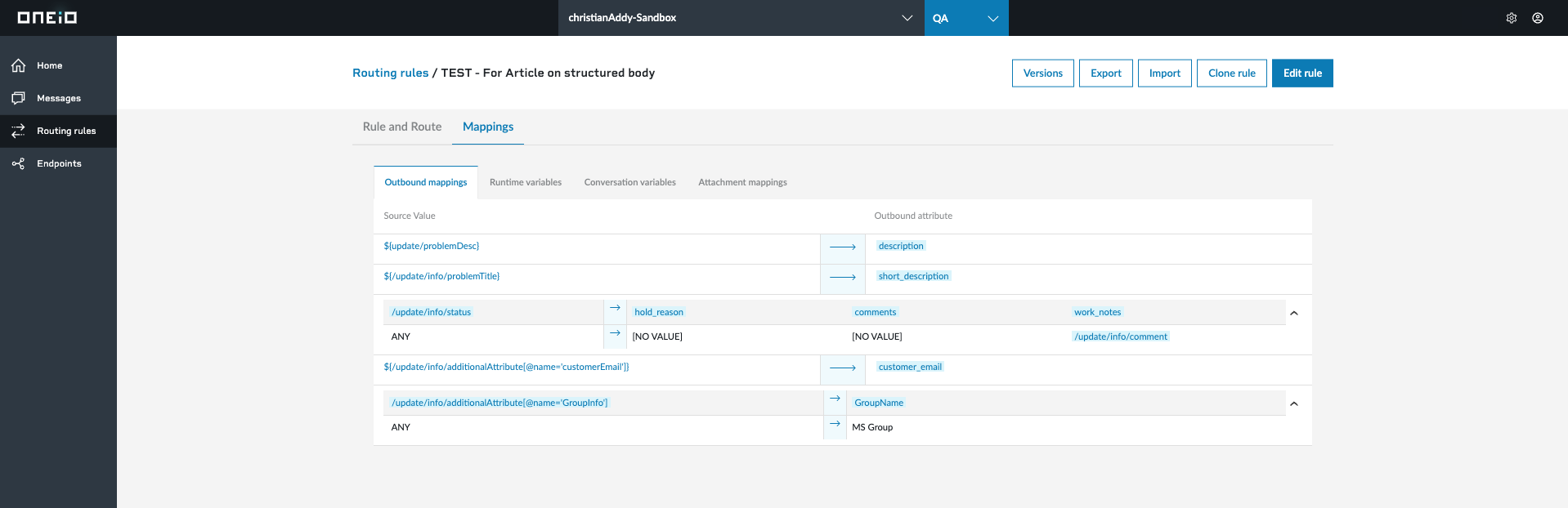

Examples in Outbound mappings - view mode

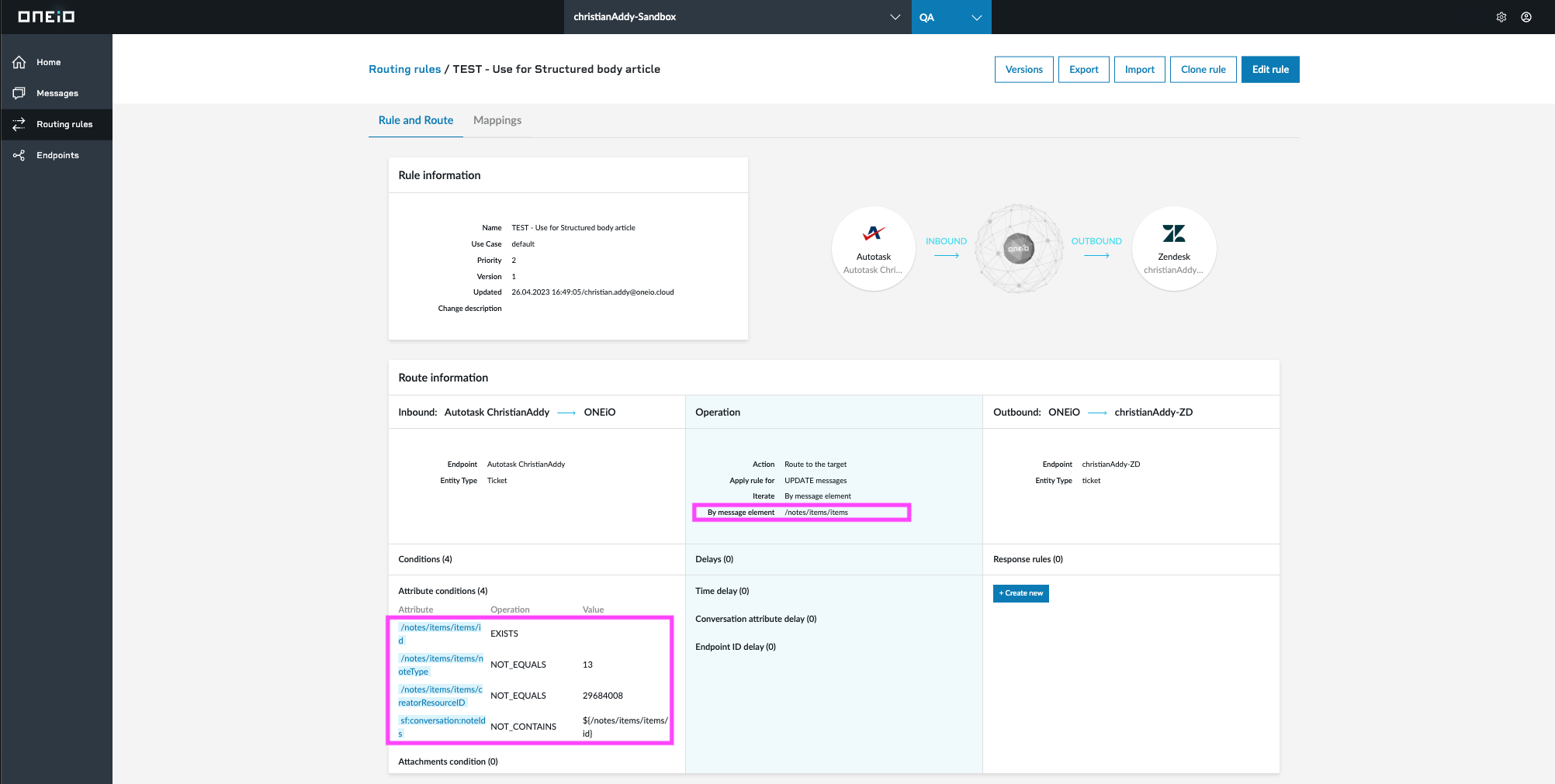

Structured body attributes used in route information
